We provide all kinds of motorized rotation stages. The stages are all equipped with stepper motor, can also be placed on optical tables or breadboards.

High Precision Motorized Rotation Stages

2. WN06RA High Precision Motorized Rotation Stages3 models to choose from, the highest load capacity varies from 15 kgf~150 kgf, the rotating speed is 3000rpm (r/min)
2. WN03RA200M Motorized Rotation Stages with Steeper MotorStepper motor and crossed-roller bearing are applied. The table size isφ200mm, the center load capacity is 250kg.
2. WN03RA200S Motorized Rotation Stages with Steeper MotorThe center load capacity is 250kg; the table size isφ200mm; the angle range is 360°.

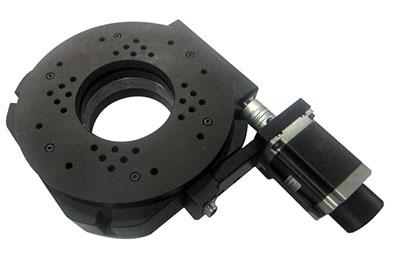

2. WN03RA250S Motorized Rotation Stages with Steeper MotorThe table size isφ230mm; the speed is 25°/sec; the center load capacity is 50kg; the angle range is 360°.

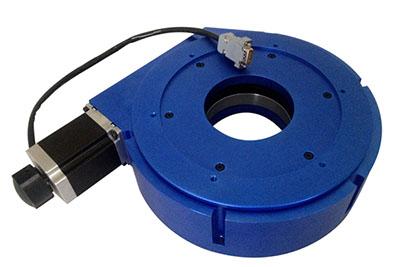

2. WN05RA400S Motorized Rotation Stages with Steeper MotorThe table size isφ400mm, the center load capacity is 450kg; the speed is 5°/sec; the angle range is 360°.

General Motorized Rotation Stages

2. WN03RA200M General Motorized Rotation StagesStepper motor and crossed-roller bearing are applied. The table size isφ200mm; the center load capacity is 250kg; the speed is 20°/sec; the angle range is 360°.
2. WN05RA400M General Motorized Rotation StagesWith stepper motor and RS232 connection; the table size isφ400mm; the center load capacity is 75kg; the speed is 5°/sec; the angle range is 360°.

Dual-Axis Motorized Rotation Stages

2. WN201RA60M Dual-Axis Motorized Rotation StagesThe stage weighs 2.2kg; the center load capacity is 3.5kg; the worm gear ratio is 90∶1; the speed is 18°/sec.
2. WN202RA100M Dual-Axis Motorized Rotation StagesThe stage weighs 4.4kg; the center load capacity is 8kg; the worm gear ratio is 180∶1; the speed is 10°/sec.
2. WN06VA50-130 Integrated Vertical and Rotation StagesThe stage provides vertical and angular placement. The stage weighs 6.9kg with an angle range of 360°. Crossed-roller bearing and linear guide rail are applied. The travel is 50mm, table size isΦ200mm; the center load capacity is 15kg, the maximal lifting speed is 20mm/sec.

Multi-Axis Motorized Rotation Stages

2. WN302RA200M Multi-Axis Motorized Rotation StageThe stage weighs 10kg, the table size is 150×150mm; the center load capacity 10kg; the worm gear ratio is 180∶1; the speed is 10°/sec.
2. WN303RA200S Multi-Axis Motorized Rotation StageThe stage weighs 36kg; the center load capacity 25kg; the worm gear ratio is 180∶1; the speed is 10°/sec.
2. WN303RA200S-1 Multi-Axis Motorized Rotation StageThe stage weighs 15kg, the center load capacity is 15kg; the worm gear ratio is 180∶1; the speed is 10°/sec.
2. WN303RA200MD Multi-Axis Continuous Rotation StageThe stage provides continuous 360° motorized rotation. The stage weighs 23kg, the table size isφ100MM; the center load capacity 10kg; the worm gear ratio is 180∶1; the speed is 35°/sec.
