Iris Diaphragm
The iris diaphragm can be used in laser processing, optical experiments and automatic measurement and testing and other places that require to adjustlight beam.
Key Features
Smooth, continuous aperture control.
Wide aperture range.
Compatible with our mounts and positioners.

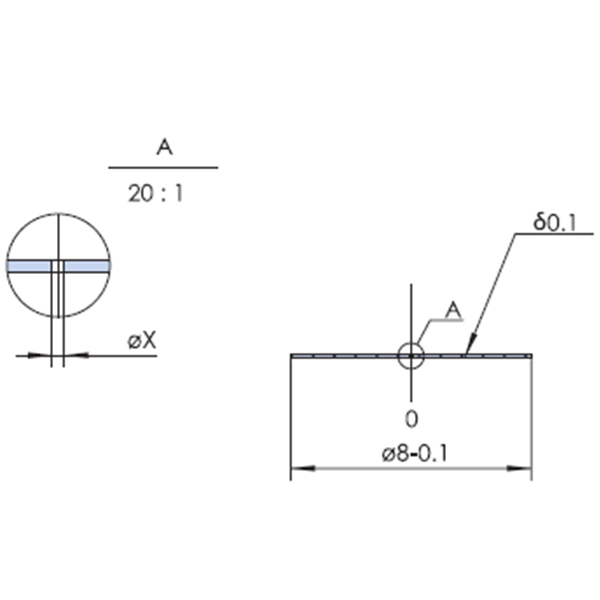

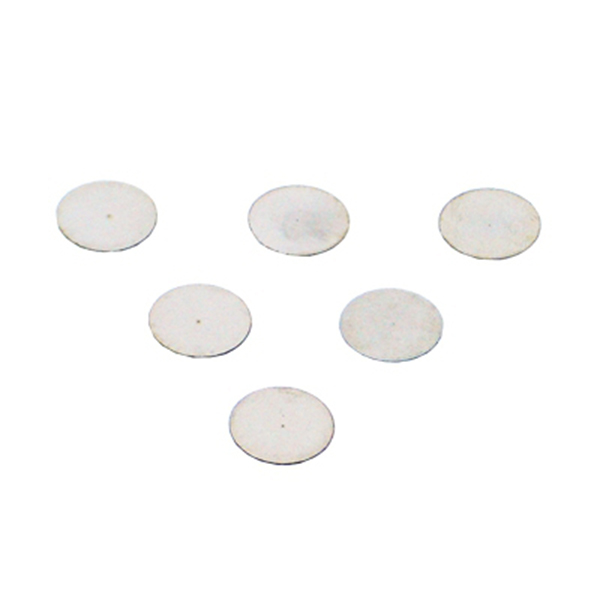

WN01ID

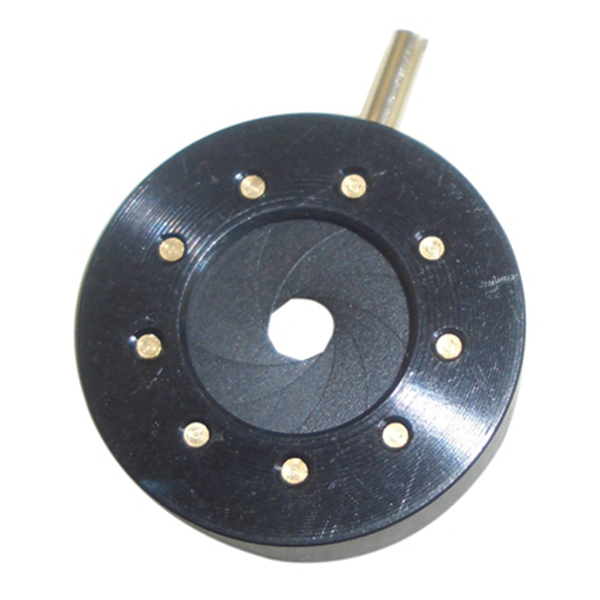

WN03ID10

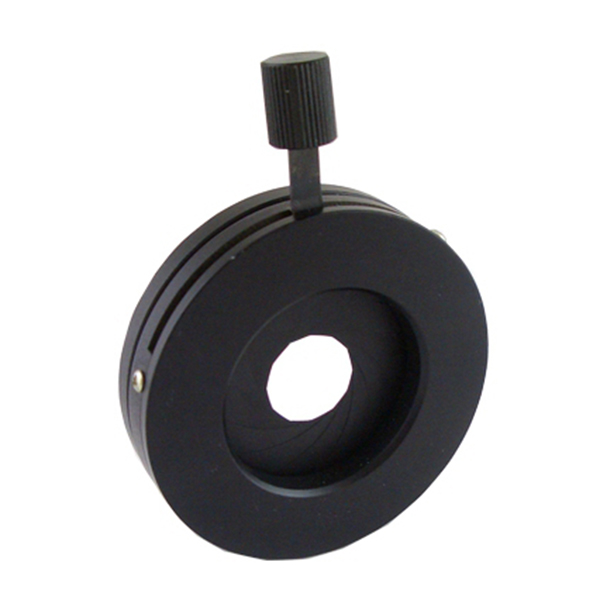

WN03ID28B
| Model | WN01ID5 | WN0ID10 | WN01ID15 | WN01ID20 | WN01ID25 | WN01ID30 | WN01ID35 | WN01ID40 | WN01ID45 | WN01ID50 | WN01ID55 |
| Aperture | 5μm | 10μm | 15μm | 20μm | 25μm | 30μm | 35μm | 40μm | 45μm | 50μm | 55μm |
| Model | WN01ID60 | WN01ID65 | WN01ID70 | WN01ID75 | WN01ID80 | WN01ID85 | WN01ID90 | WN01ID95 | WN01ID100 | WN01ID110 | WN01ID120 |
| Aperture | 60μm | 65μm | 70μm | 75μm | 80μm | 85μm | 90μm | 95μm | 100μm | 110μm | 120μm |
| Model | Clear apertureΦ (mm) | External diameterΦ (mm) | Thickness (mm) | Blade number | Material | Installation part | ||
| maximum | minimum | Inner ring | Outer ring(shell) | |||||

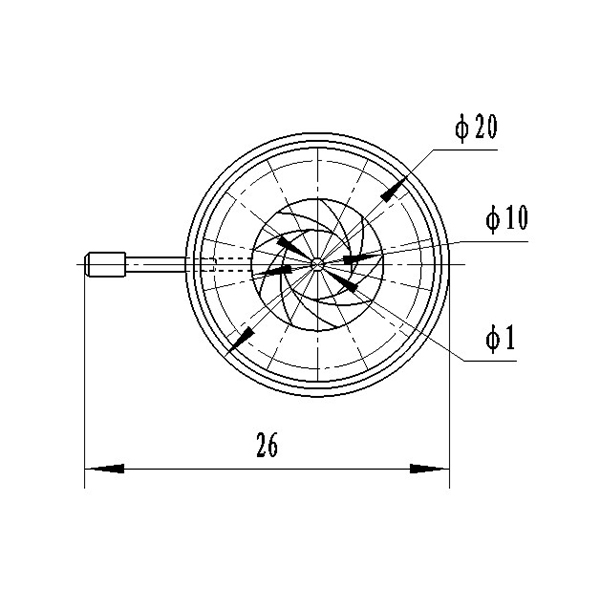

| WN03ID10 | 10 | 1 | 20 | 5 | 9 | Aluminum | Aluminum | Outer ring |
| Model | Clear aperture Φ (mm) | External diameter Φ (mm) | Thickness (mm) | Blade number | Material | Installation part | ||
| maximum | minimum | Inner ring | Outer ring(shell) | |||||

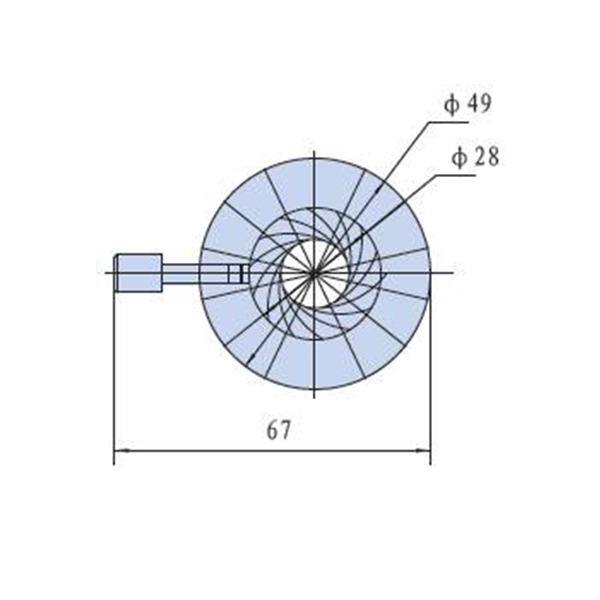

| WN03ID28B | 28 | 2 | 49 | 8 | 12 | Steel | Aluminum | Thread |
