WN03RA250S Motorized Rotation Stages with Steeper Motor

WN03RA250S motorized rotation stage with stepper motor can realize full-automatic control. Featured with high precision worm gear structure, the stage can rotate forward and backward with minimal backlash.

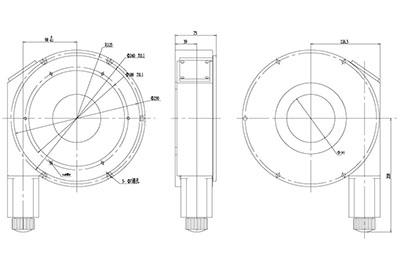

The table size is φ230mm, center load capacity is 50kg, with an angle range of 360°.

Model WN03RA250S
Structure Angle range 360°
Table size φ230mm
Worm gear ratio 180∶1
Driving gear Worm gearing
Guide rail Bearing
Stepper motor ；(1.8°) SST57D2121
Material Aluminum alloy
Surface Blackened by anodic oxidation
Center load capacity 50kg
Weight 10kg
Accuracy Resolution 0.001°(Non-MS driver)
0.0005°(20 MS driver)
Speed 25°/sec
Repeatability 0.005°=18″
Run-out of top plate 15µ
Backlash 0.005°=18″
Eccentricity 5µ
Step-out 0.005°=18″
