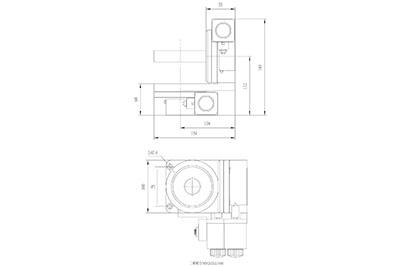

WN202RA100M Dual-Axis Motorized Rotation Stages

WN202RA100M dual-axis motorized rotation stage can rotate 360°around Y, Z axes. Equipped with stepper motor and high precision worm gear system, the rotation stage can rotate forward and backward at ease with minimal backlash.
Weight: 4.4kg; center load capacity: 8kg; Worm gear ratio: 180∶1; speed: 10°/sec.

Model WN202RA100M
Structure Angle range 360°Rotation around Y,Z axes
Worm gear ratio 180∶1
Driving gear Electric rotary table
Guide rail Bearing
Stepper motor (1.8°) SST42D3301
Material Aluminum alloy
Surface Blackened by anodic oxidation
Center load capacity 8kg
Weight 4.4kg
Accuracy Resolution 0.01°=36″(Non-MS driver)
0.0005°=1.8″(20 MS driver)
Speed 10°/sec
Repeatability 0.01°=36″
Main module:WN02RA100M
