WN303RA200S Multi-Axis Motorized Rotation Staged

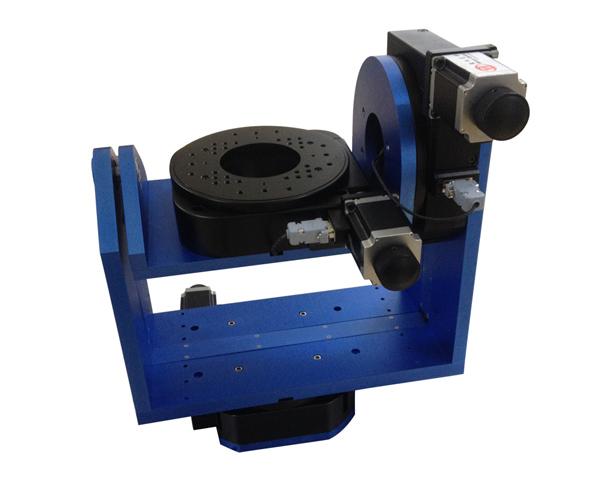

Featured with high precision worm gear structure, WN303RA200S multi-axis motorized rotation stage has high center load capacity and a long lifespan. It can rotate 360°forward and backward around X, Y, Z axes with minimal backlash. The stage weighs 36kg with the center load capacity of 25kg, worm gear ratio is 180∶1, the rotating speed is 10°/sec.

Model WN303RA200S
Structure Angle range 360°Rotation around X, Y, Z axes
Worm gear ratio 180∶1
Driving gear Electric rotary table
Guide rail Bearing
Stepper motor(1.8°) SST57D3301
Material Aluminum alloy
Surface Blackened by anodic oxidation
Center load capacity 25kg
Weight 36kg
Accuracy Resolution 0.01°=36″(Non-MS driver)
0.0005°=1.8″(20 MS driver)
Speed 10°/sec
Repeatability 0.01°=36″
Main module:WN03RA200S
