WN265TA(15-50)H Compact Motorized Stage

WN265TA30H compact motorized stage is suitable for providing linear displacement by electric control in automatic displacement control in scientific research, full-automatic measuring and testing equipment, industrial automation and other fields. It is small, light and is suitable for low speed and low load situation.

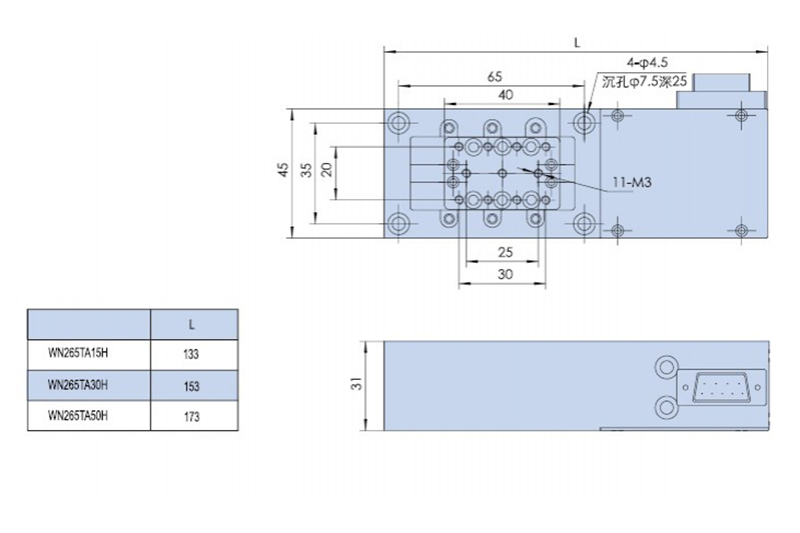

Parameter table of WN265TA(15-50)H Compact Motorized Stage
Model WN265TA15H WN265TA30H WN265TA50H
Travel 15 mm 30 mm 50 mm
Table Size 40×25mm 40×25mm 40×25mm
Screw type Ground lead screw (lead 0.5mm) Ground lead screw (lead 1mm)
Stepper Motor (1.8°) 20STH30-0604A
Load Capacity 5kg
Weight 2.2kg 2.75kg 3kg
Resolution 2.5μ (Non-MS driver) 0.125μ (20 MS driver) 5μ (Non-MS driver)
0.25μ (20 MS driver)
Maximum Speed 5mm /sec 10mm /sec
Repeatability 2μ 2.5μ
Positional Accuracy 8μ
Straightness 5µ 8µ
Driving Parallelism 10µ 15µ
Pitching 25″
Yawing 20″
Backlash 1µ
Runout 1µ
Features of WN265TA(15-50)H Compact Motorized Stage
  • Equipped with standard stepper motor and RS232 interface, the WNSC series motion controller which was independently developed by BJWN can realize automatic motion control.
  • High quality precision ground lead screw drive, small lead, same micro-steps can realize high resolution.
  • The clearance of the ground lead screw can be minimized by the structure design of eliminating backlash nuts.
  • Cross roller guide, stable, adjustable for the pre-tension force of guide and eliminating clearance, could be used in multi-dimensional combination.
  • Greatly reduce the pitching and yawing of the motorized stage through the ground base plate and the reasonable mounted guide, so as to effectively improve the straightness and driving parallelism.
  • Connected the stepper motor and ground lead screw by high quality flexible coupling, drive synchronization, good for eliminating eccentricity and greatly reducing eccentricity disturbance, lower noise.
  • Install zero and limit switches at both ends for accurate positioning and product protection.
  • The base has tapped hole and through hole with standard spacing for the convenience of installation and fixation.
  • Accept customized installation of servo motor and linear scale.
