WN200TA(50-600)H Motorized Linear Stage

WN200TA(50-600)H motorized linear stage has 8 types to choose from, the travel varies from 50mm to 600mm. Feathered with high precision ball screw and linear slide rail, the linear stage is ideally for industrial processing, laboratory working or other heavy workload. The stage itself is equipped with dust cover. We also provide customized products, you can choose the desired travel yourself.

Model WN200TA50H WN200TA100H WN200TA150H WN200TA200H WN200TA300H WN200TA400H WN200TA500H WN200TA600H
Structure Travel 50 mm 100 mm 150 mm 200 mm 300 mm 400 mm 500 mm 600 mm
Table Size 150×150mm 150×150mm 150×150mm 150×150mm 150×150mm 150×150mm 150×150mm 150×150mm
Screw Type High precision ball screw (lead 5mm) Ball screw (lead 5mm/10mm)
Guide Rail High precision linear slide rail
Stepper Motor (1.8°) STP-57D3016
Material Aluminum alloy/Stainless steel
Surface Blackened by anodic oxidation
Load Capacity 20kg 30kg 50 kg
Weight 2.8kg 3.4kg 4.5kg 5.2kg 6.3kg 7.2kg 8.3kg 10.3kg
Accuracy Resolution 20μ(Non-MS driver)
1μ(20 MS driver)		 25μ/50μ(Non-MS driver)
1.25μ/2.5μ(20 MS driver)
Maximum Speed 40mm/sec 50mm/sec or 100mm/sec
Repeatability 1μ 2μ
Positional Accuracy 3μ 5μ
Straightness 3µ 4µ 5µ
Driving Parallelism 10µ 15µ 20µ
Pitching 25″ 50″ 60″
Yawing 20″ 25″ 30″
Backlash 2µ
Runout µ 2µ
Accessories Able to add failsafe system(Z)
Able to add grating scale(G)
Able to change to servo motor(D)
Able to add dust cover(F)

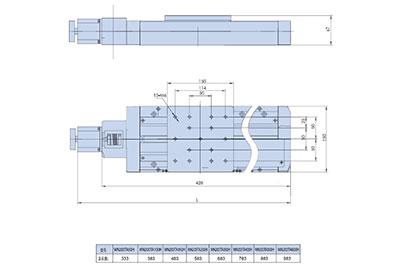

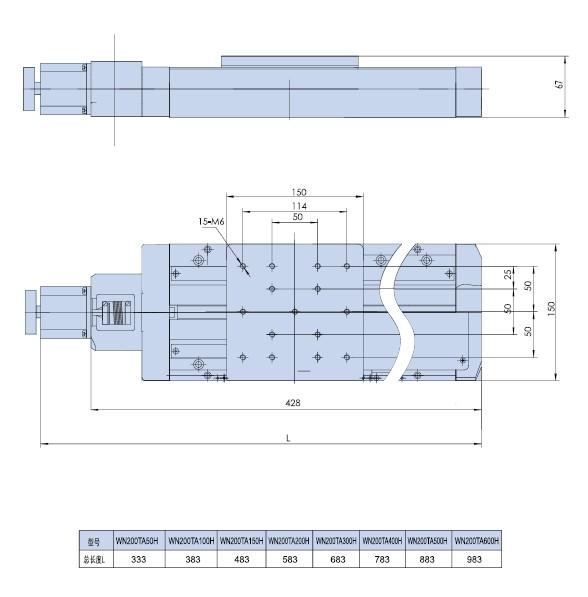

Model
