WN220TA(50-300)S-G Motorized Linear Stage

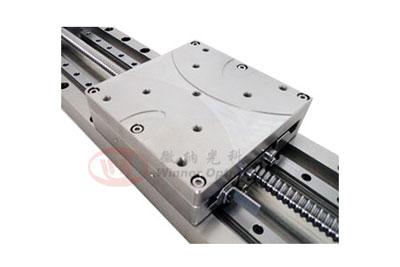

WN220TA (50-300) S-G motorized linear stage has 4 models to choose from, with a wide travel range of 50mm~300mm. The main body of motorized linear stage is made by stainless steel. Besides, featured with stepper motor and ball screw, the linear stage is well fitted to work under high load such as in industrial processing, laboratory etc.

Features
  • High load capacity and rigidity with imported ball screws and linear slide rail, suitable for working under high load, such as industrial processing or laboratory.
  • Stainless steel as main body material, making the linear stage heavier and more stable, also impervious to temperature and moisture.
  • Grating scale forms closed loop, which makes the linear stage more accurate. 5-phase stepper motor also increases the performance.
  • High precision ball screws ensures good repeatability and positional accuracy. Small axial clearance; long lifespan; also equipped with dustproof cover.
Model WN220TA50S-G WN220TA100S-G WN220TA200S-G WN220TA300S-G
Structure Travel 50mm 100mm 200mm 300mm
Table Size 115×115mm 115×115mm 115×115mm 115×115mm
Screw Type High precision ball screw (lead 5mm)
Guide Rail High precision linear slide rail
Stepper Motor (0.72°) 5-phase Stepper motor
Material Stainless steel
Load Capacity 30 kg
Weight 8kg 10kg 12kg 13kg
Accuracy Resolution 10μ(Non-MS driver) 0.5μ(20 MS driver)
Maximum Speed 25mm/sec
Repeatability ＜1μ
Straightness 8μ 10μ 15μ
Driving Parallelism 15μ 20μ 25μ
Accessories Renishaw grating scale with the resolution of 0.1μ
