Cylindrical Laser Mount
The cylindrical laser mount can be used in laser processing, optical experiments and automatic measurement and testing and other places that require to assemble cylindrical laser head. Pitching and yawing adjustment available.
WN03LM45
WN04LM60
| Model | WN03LM45 |
| Mounting diameter | 45mm (MAX) |
| Adjustment range | ±5° |
| Weight | 0.65 kg |
- Pitching and yawing adjustment available.
- With non-metallic locking screw and a V-groove opposite to the locking screw, the clamping is safe and stable.
- Laser head or cylindrical lens with different diameters can be mounted.
- Driven by a micrometer head, the cylindrical laser mounts can be adjusted quantificationally.

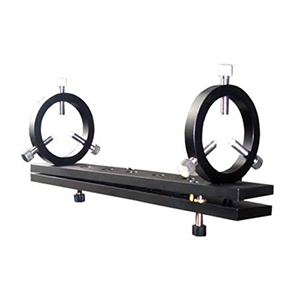

| Model | WN04LM60 |
| Mounting diameter | 60mm (MAX) |
| Adjustment range | ±5° |
| Weight | 0.8 kg |
- Laser head rotating and pitching adjustment available.
- With two fixing devices in front and back, the mount is stable and reliable.
- Laser head or cylindrical lens with different diameters can be mounted, and the center is adjustable.
- The distance between the two fixing devices can be adjusted to suit different lengths of laser head.
- Adopt fine pitch screw to drive and high quality disc spring to reset.
