φ20mm Optical Post Clamps

φ20mm optical post clamp with adjustable angle could rotate 360°relative to each other. It could combine holders together according to required angle.
2 models to choose from: WN01UP(20-12) and WN01UP20. WN01UP(20-12) could combine φ20mm holder together with φ12mm holder; WN01UP20 could combine 2φ20mm holders.

Features
  • Two holders can rotate 360°relative to each other.
  • Fine processing axis provides precision adjustment, the space between remains fixed.
  • The locking knob is firm and stable.
WN01UP(20-12) Optical Post Clamps

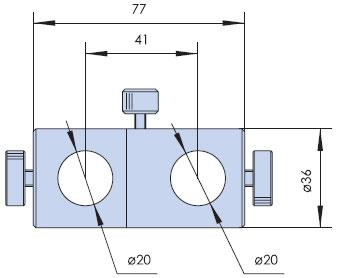

WN01UP20
Model A B C(aperture) D(aperture) E Weight
WN01UP(20-12) 77 36 20 12 44 0.15 kg
WN01UP20 77 36 20 20 41 0.15 kg
