Prism Mounts

The precise prism table can be used in laser processing, optical experiments and automatic measurement and testing and other places that require to mount and fix noncircular polyhedron prisms or crystals and other objects.

  1. WN02PT
  2. WN04PT

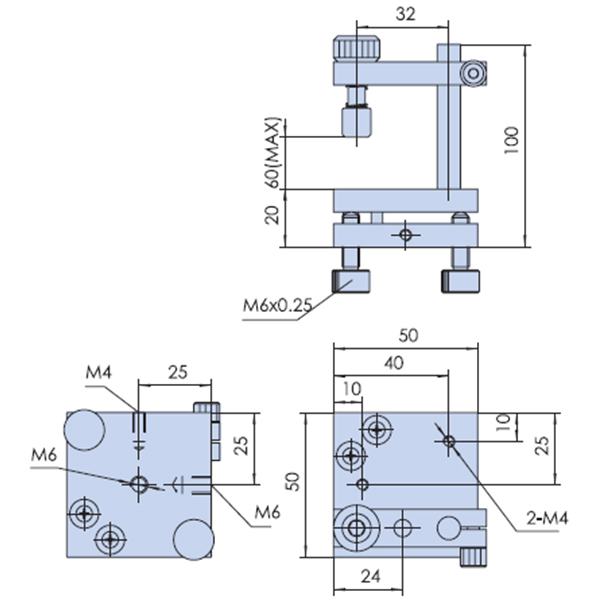

WN02PT Precise prism table
Specification
Model WN02PT
Mounting height 60mm (MAX)
Table size 50x50mm
Adjustment range ±5°
Features
  • Two dimensional tilting adjustment available.
  • Reset by disc spring
  • The clamping force is adjustable.
WN04PT Precise prism table
Features
  • The precise prism table can be used to mount cylindrical lens or laser head.
  • 50-100mm mounting diameter
  • The clamping force is adjustable.
