Adjustable Lens Mounts

The adjustable lens mount can be used in laser processing, optical experiments and automatic measurement and testing and other places that require to adjust optics mounted.

  1. WN01AM
  2. WN03AM
WN01AM Adjustable lens mount
Specification
Model WN01AM
A MIN 5 mm 5 mm 5 mm
MAX 50 mm 76 mm 102 mm
B 46 mm 72 mm 100 mm
C 70 mm 102 mm 140 mm
D 90 mm 126 mm 160 mm
E 11 mm 16 mm 16 mm
F 19 mm 30 mm 30 mm
weight 0.15 kg 0.2 kg 0.3 kg
Features
  • Three mounting open synchronously, suitable for lenses with different diameters.
  • The center of the lens does not change when replacing lens.
  • The spring can be reset automatically, which is suitable for light weight lenses.

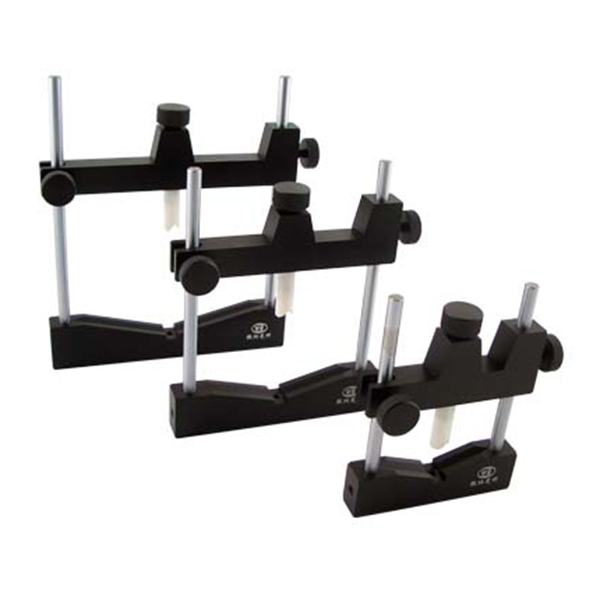

WN03AM Adjustable lens mount
Specification
Model WN03AM50 WN03AM75 WN03AM100
A 42 mm 65 mm 90 mm
B 54 mm 80 mm 105 mm
C 80 mm 106 mm 126 mm
D 100 mm 128 mm 151 mm
E 76 mm 102 mm 127 mm
F 38 mm 51 mm 63.5 mm
mounting diameter 5-50 mm 5-75 mm 10-100 mm
weight 0.15 kg 0.2 kg 0.25 kg
Features
  • Adjustable clamping structure makes it assemble easily and hold stably.
  • Made of Teflon, designed for V shape, the mounting finger can protect lenses.
  • With V shaped rotatable mounting finger at 360°and V shaped base, the optical mount can hold lenses or cylindrical lenses of different thicknesses
