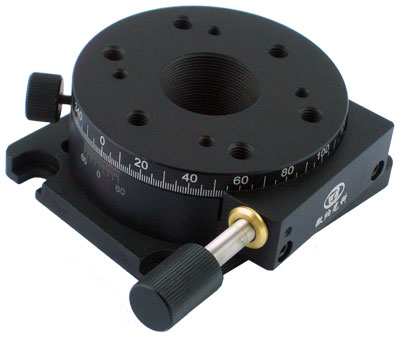

Adjustment Screw Rotation stages

Our adjustment screw rotation stages have mounting holes distributed in standard distance on the base and table, which makes the stage convenient to combine with other series of stages. The stages are made of aluminum alloy, can be coarsely adjusted at 360°, finely adjusted at 3° or 10°. 3 models to choose from.

Features
  • The stage table can be coarsely adjusted at 360°.
  • The axial clearance is adjustable for good stability
  • With 1° graduation over 360°, it is convenient to read values.
  • The mounting holes are distributed on the base and table in standard distance, which makes the stage convenient to combine with other series of stages to form multi-axis positioning stage.
WN01RM56
WN01RM82-1
WN01RM73
Model WN01RM56 WN01RM73 WN01RM82-1
Table diameter φ56mm φ73mm φ82mm
Drive Thread screw pair Thread screw pair Thread screw pair
Travel range coarse360° fine ±3° coarse 360°fine ±3° coarse 360° fine ±10°
Smallest graduation 2° 1° 1°
Minimum readout 0.2° 5′ 2′
Minimum incremental motion 10″(Reference) 6″(Reference) 15″(Reference)
Load capacity 2kg 5kg 5kg
Table runout 60μ 60μ 60μ
Eccentricity 30μ 30μ 30μ
Table parallelism 60μ 60μ 60μ
Weight 0.15kg 0.35kg 0.5kg
Material Duralumin Duralumin Duralumin
Surface Black anodizing Black anodizing Black anodizing
Center hole diameter φ26 M27X1, φ25.4 lens can be added —
