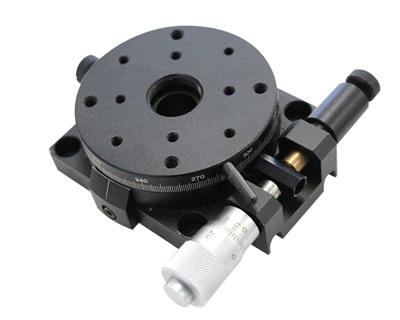

Precision Rotation Stages

Our precision rotation stages are made of stainless steel or aluminum alloy, guaranteeing a long lifespan. Driven by micrometer head, the stage can be adjusted at 360°coarsely, 5°or 10°finely. 4 models to choose from, their capacity is 5kg and 8kg respectively.

Features of precision motorized linear stage
  • The stage table can be coarsely adjusted at 360°.
  • The axial clearance is adjustable for good stability.
  • With 1° graduation over 360°, it is convenient to read.
  • The mounting holes are distributed on the base and table with standard hole spacing, which makes the stage convenient to combine with other series of stages to form multi-axis positioning stage.

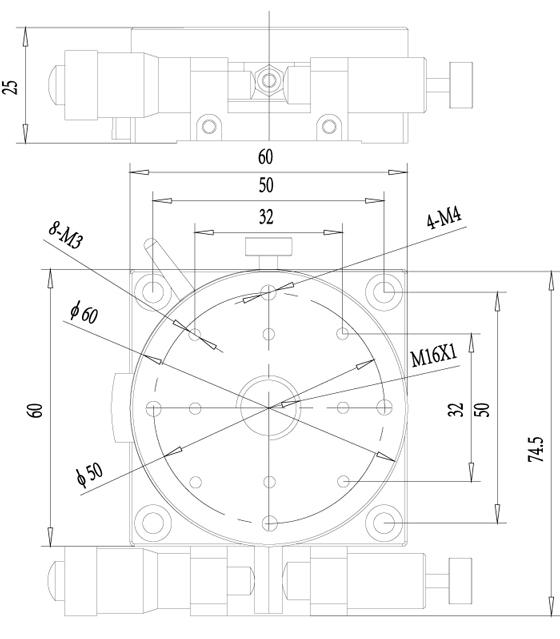

WNB43-60
WNB43-60H
WNB43-110N
WN01RM82
Model WNB43-60H WNB43-60 WNB43-110N WN01RM82
Table diameter φ60mm φ60mm φ110mm φ82mm
Drive Manual(Micrometer head is added) Manual(Micrometer head is added) Manual(Micrometer head is added) Micrometer head
Travel range coarsely 360 finely ±5° coarsely 360 finely ±5° coarsely 360 finely ±5° coarsely 360 finely ±10°
Smallest graduation 1° 1° 1° 1°
Minimum readout 2′ 2′ 2′ 2′
Minimum incremental motion 15″(Reference) 15″(Reference) 15″(Reference) 15″(Reference)
Load capacity 5kg 5kg 8kg 5kg
Table runout 20μ 60μ 60μ 60μ
Eccentricity 10μ 30μ 30μ 30μ
Table parallelism 15μ 60μ 60μ 60μ
Weight 0.85kg 0.5kg 0.5kg 0.5kg
Material Stainless steel Duralumin Duralumin Duralumin
Surface Black anodizing Black anodizing Black anodizing
