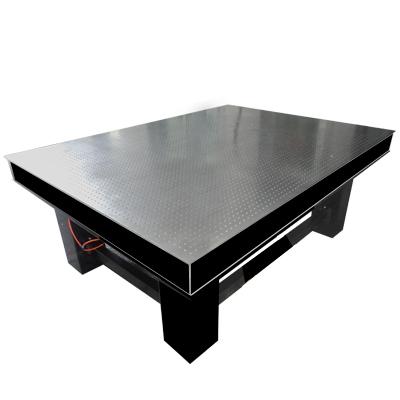

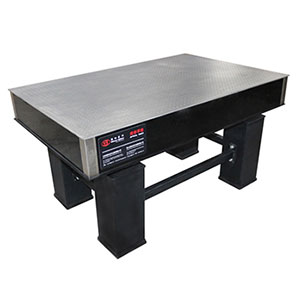

WN01AL Optical Table Systems

WN01AL optical table systems are large-sized vibration isolated platforms. The table is made of high magnetic conductive stainless steel plate with automatic balancing system: air servo system can adjust the level automatically. Its outstanding feature is that it gives feedback to the system when little vibration appears. The effects of vibration can thus be improved. The test shows that the table can return to the original balance immediately even under higher load. You can choose from different sizes and models.

Features
  • The frame is made of high quality medium carbon steel plate with strong rigidity, small deformation and good welding performance.
  • Vibration can be controlled to the maximum extent by using honeycomb structure materials with low natural frequency and strong vibration resistance.
  • Vibration isolation support uses two layer diaphragm capsule and high damping materials to ensure good vibration isolation performance. Equipped with automatic inflation system and imported quiet air machine, the system can be used for experiments.
  • The quiet air machine with low noise is used as the air source (< 65dB)
  • Table material:stainless steel and 1Cr17
  • Flatness:≤ 0.05mm/m2
  • Roughness:≤ 1.6μm
  • Number of supports:4
  • Load capacity:800Kg
  • Inflation system:automatic
  • Leveling:automatic
  • Natural frequency:vertical 1.2Hz~1.8Hz, horizontal 1.2Hz~1.8Hz
  • Amplitude:< 1.2μm
  • Repeatability:+0.05mm
  • Air pressure:0.2-0.6(Mpa)
Specification
Model L-W-H Marks
WN01AL600x600x80 600-600-800 4 supports, M6 hole pitch 25mm
WN01AL750x750x80 750-750-800 4 supports, M6 hole pitch 25mm
WN01AL900x600x80 900-600-800 4 supports, M6 hole pitch 25mm
WN01AL1200x800x100 1200-800-800 4 supports, M6 hole pitch 25mm
WN01AL1500x1000x200 1500-1000-800 4 supports, M6 hole pitch 25mm
WN01AL1800x1200x200 1800-1200-800 4 supports, M6 hole pitch 25mm
WN01AL2000x1000x200 2000-1000-800 4 supports, M6 hole pitch 25mm
WN01AL2000x1200x200 2000-1200-800 4 supports, M6 hole pitch 25mm
WN01AL2000x1500x200 2000-1500-800 4 supports, M6 hole pitch 25mm
WN01AL2400x1200x200 2400-1200-800 4 supports, M6 hole pitch 25mm
WN01AL2400x1500x200 2400-1500-800 4 supports, M6 hole pitch 25mm
WN01AL3000x1000x300 3000-1000-800 6 supports, M6 hole pitch 50mm
WN01AL3000x1200x300 3000-1200-800 6 supports, M6 hole pitch 50mm
WN01AL3000x1500x300 3000-1500-800 6 supports, M6 hole pitch 50mm
WN01AL3500x1200x300 3500-1200-800 6 supports, M6 hole pitch 50mm
WN01AL3500x1500x300 3500-1500-800 6 supports, M6 hole pitch 50mm
WN01AL4000x1500x300 4000-1500-800 6 supports, M6 hole pitch 50mm
WN01AL4500x1500x300 4500-1500-800 6 supports, M6 hole pitch 50mm
WN01AL5000x1500x300 5000-1500-800 8 supports, M6 pitch hole 50mm
WN01AL6000x1500x300 6000-1500-800 8 supports, M6 pitch hole 50mm
WN01AL8000x1500x300 8000-1500-800 8 supports, M6 pitch hole 50mm
