WN02VD Optical Table Systems with Pneumatic isolated frame

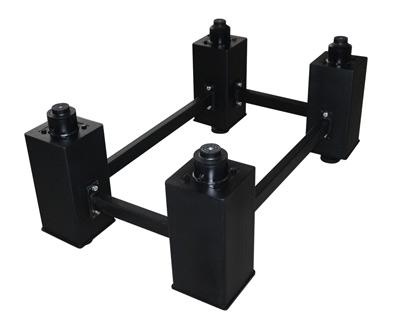

WN02VD optical table system is designed with pneumatic isolated frame. You can choose different sizes of shock absorb airbags based on the load capacity. The available capacity is 50-9000kg.

Features
  • Vibration can be controlled to the maximum extent by using honeycomb structure materials with low natural frequency and strong vibration resistance.
  • The table is made of high magnetic conductive stainless steel plate, which gives table a wear resistant, good-looking surface.
  • Shock absorb airbags are used as vibration isolation supports. The airbags are inflated before delivery. The airbag has good sealing property, once inflated, the bag can be used for many years.
  • Wear resistant screws are used as adjusting support.
  • Flatness：< 0.05mm/m2
  • Roughness：< 0.8μm
  • Natural frequency：vertical 1.2Hz～2.0Hz, horizontal 1.2Hz～2.0Hz
  • Amplitude：< 1.2μm
Specification
Model L-W-H Marks Load capacity
WN02VD600x600x80 600-600-800 4 supports, M6 hole pitch 25mm 400 KG
WN02VD750x750x80 750-750-800 4 supports, M6 hole pitch 25mm 400 KG
WN02VD900x600x80 900-600-800 4 supports, M6 hole pitch 25mm 400 KG
WN02VD1200x800x100 1200-800-800 4 supports, M6 hole pitch 25mm 400 KG
WN02VD1500x1000x200 1500-1000-800 4 supports, M6 hole pitch 25mm 800 KG
WN02VD1800x1200x200 1800-1200-800 4 supports, M6 hole pitch 25mm 800 KG
WN02VD2000x1000x200 2000-1000-800 4 supports, M6 hole pitch 25mm 800 KG
WN02VD2000x1200x200 2000-1200-800 4 supports, M6 hole pitch 25mm 800 KG
WN02VD2000x1500x200 2000-1500-800 4 supports, M6 hole pitch 25mm 800 KG
WN02VD2400x1200x200 2400-1200-800 4 supports, M6 hole pitch 25mm 800 KG
WN02VD2400x1500x200 2400-1500-800 4 supports, M6 hole pitch 25mm 800 KG
WN02VD3000x1000x300 3000-1000-800 6 supports, M6 hole pitch 50mm 1200 KG
WN02VD3000x1200x300 3000-1200-800 6 supports, M6 hole pitch 50mm 1200 KG
WN02VD3000x1500x300 3000-1500-800 6 supports, M6 hole pitch 50mm 1200 KG
WN02VD3500x1200x300 3500-1200-800 6 supports, M6 hole pitch 50mm 1200 KG
WN02VD3500x1500x300 3500-1500-800 6 supports, M6 hole pitch 50mm 1200 KG
WN02VD4000x1500x300 4000-1500-800 6 supports, M6 hole pitch 50mm 2400 KG
WN02VD4500x1500x300 4500-1500-800 6 supports, M6 hole pitch 50mm 2400 KG
WN02VD5000x1500x300 5000-1500-800 8 supports, M6 hole pitch 50mm 3200 KG
WN02VD6000x1500x300 6000-1500-800 8 supports, M6 hole pitch 50mm 3200 KG
WN02VD8000x1500x300 8000-1500-800 8 supports, M6 hole pitch 50mm 3200 KG
