4-Axis Kinematic Mounts

Our 4-axis kinematic mounts has a linear displacement range of ±2mm; the tilt adjustment is ±4°; the lens can be linear displaced and tilt adjusted in two dimensions.

Features
  • The lens can be linear displaced and tilt adjusted in two dimensions.
  • M6x0.25 closely pitched screw thread, along with special brass nuts, the screw can be locked firmly without displacement.
  • Plate shaped spring reset, adjustable reset force from zero to rigidity.
  • Screw thread clamping fixes the lens.

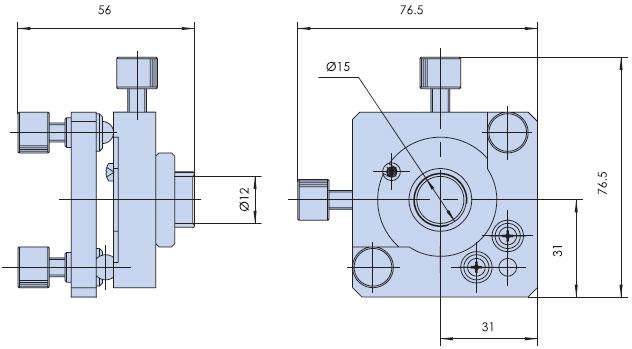

Model WN41KM15
Translation adjustment range ±2mm
Tilt adjustment range ±4°
Suitable lens diameter 15mm，20mm（equipped with lens barrel）
