3-Axis Kinematic Mounts

We provide 3 kinds of 3-axis kinematic mounts: WN42KM20/ WN43KM30/ WN31KM20. They can do adjustment like pitching, linear and angular displacement. The mount is mostly applied in laser processing or other places that require precise adjustment of lens.

WN42KM20

• The mount can do multi-dimensional adjustment, can move 13mm along X axis; the inserted adjustment screw has self-locking and positioning function.
• ±2mm adjustment along Z axis. The mount also has positioning function.
• ±4°pitching adjustment around pivot; the inserted adjustment screw has self-locking and positioning function.

WN43KM30

• The product can do two-dimensional pitching adjustment.
• The mount can do linear and vertical displacement, the travel range is 13mm.
• The mount can be grouped with lens mounts of different diameters and do four-dimensional adjustment.

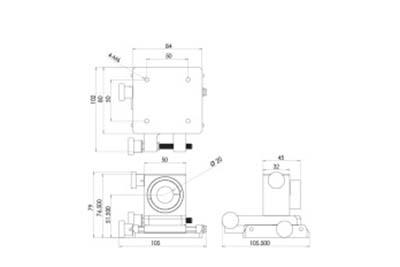

WN31KM20

• The rotating part is worm gear system, can rotate 360°and can be self-locked.
• The angular adjustment is driven by grinding screw pair.
• The translation part is driven by high precision screw pair.
• The diameter of clamping hole is 20mm, strengthened by screws, the mount is fixed and reliable.
