Two-Axis Tilt Platforms

We provide 2 models of two-axis tilt platforms. These platforms can provide two-dimensional pitching adjustment and align the optical modules. The platform is reset by spring to eliminate backlash and is driven by micrometer head. These 2 models have the pitching range of ±4°和±5°.

Features
  • The platform provides two-dimensional pitching adjustment.
  • The tilt platform is driven by micrometer head. With high quality disc formed spring, the platform can be reset stable.
  • The mounting holes are distributed on the base and table with standard hole spacing, which makes the platform convenient to combine with other series of products.

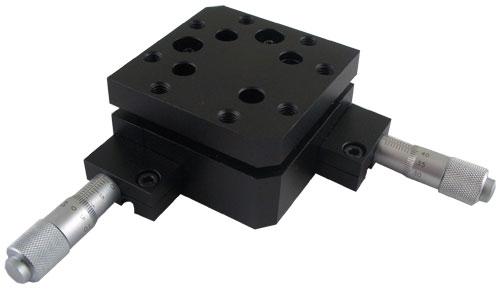

WN05SM4
Able to change the linear movement to pitching adjustment.
WN02SM5

Model WN05SM4 WN02SM5
Table size 60mm×60mm 125mm×75mm
Function θx, θy two-dimensional pitching adjustment θx,θy two-dimensional pitching adjustment
Driving gear Micrometer linear drive Micrometer 2-axis drive
Adjustment range Pitching ±4° ±5°
Minimum adjustment 5′ 5′
Load capacity 4kg 10kg
Weight 0.35kg 0.51kg
Material Duralumin Duralumin
Surface Black anodizing Black anodizing
