One-Axis Tilt Platforms

The one-axis platform provides one-dimensional pitching adjustment. 2 models to choose from, can control the tilt within a deviation within ±3° or ±4°. The mounting plate is made of aluminum alloy. Maximal load capacity is 4kg and 10kg. With high quality disc formed spring, the platform can be reset stable.

Features
  • The platform provides one-dimensional pitching adjustment.
  • The tilt platform is driven by micrometer head. With high quality disc formed spring, the platform can be reset stable.
  • The mounting holes are distributed on the base and table with standard hole spacing, which makes the platform convenient to combine with other series of products.
WN04SM4
Able to change the linear movement to pitching adjustment.

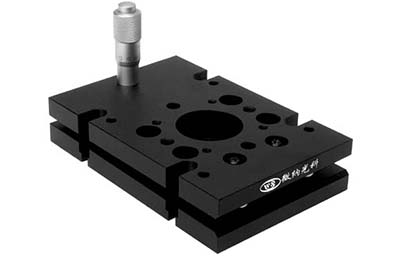

WN01SM3
30mm center diameter allows light transmission.
Model WN04SM4 Model WN01SM3
Table size 60mm×60mm Table size 120mm×80mm
Function θx one-dimensional pitching adjustment Function θx one-dimensional pitching adjustment
Drive Micrometer linear drive Drive Micrometer 1-axis drive
Adjustment range Pitching ±4° Adjustment range ±3°
Minimum adjustment 5′ Minimum adjustment 5′
Load capacity 4kg Load capacity 10kg
Weight 0.34kg Weight 0.5kg
Material Duralumin Material Duralumin
Surface Black anodizing Surface Black anodizing
