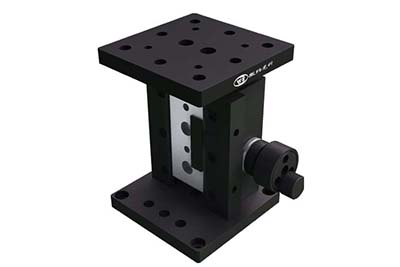

Vertical Translation Stages

Vertical translation stages are suitable to provide vertical displacement manually in the fields of scientific research, automatic measurement and test.
6 models to choose from, the maximal displacement range is 5mm-25mm. The adopted bearings are Cross roller Bearing and Linear bearing

• Adopting high quality cross roller guide, the stage has a higher precision and large load capacity.
• The lateral clearance adjustment structure ensures smooth movement and high accuracy of yawing and pitching.
• Driven indirect by micrometer head, reversing gear changes the linear driving into vertical driving.
• The stage is reset by spring to eliminate backlash.
• The mounting holes are distributed on the base and table with standard hole spacing, which makes the platform convenient to combine with other series of products.
