Lab Jacks

The lab jack adopts scissors type jack to provide vertical displacement manually in the fields of scientific research, automatic measurement and test.
2 models to choose from: Ultra-fine lead screw Lab Jacks and translation screw Lab Jacks. The minimal travel range is 20mm, maximal travel range is 200mm.

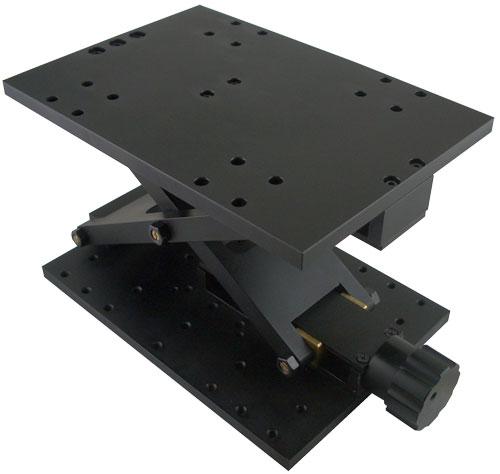

Lab Jacks with Ultra-fine lead screw

Features
  • For longer travel, high load lifting.
  • Equipped with scissor-shaped lifting system with six guides, ultra-fine lead screw and six-guide positioning mechanism, the stage has a high degree of stability, precision and load capacity,
  • The table is broadened and designed with plenty of mounting holes, making it easy to install.
  • With locked knob, the lab jack is stable and reliable.
  • The mounting holes are distributed on the base and table with standard hole spacing, which makes the stage convenient to combine with other series of stages to form high precision six dimensional positioning stage.
WN08VM60
WN09VM120
WN10VM120
WN15VM100
Model WN10VM200 WN10VM120 WN09VM120 WN08VM60
Table size 320mm×180mm 165mm×240mm 140 mm×220 mm 120 mm×80mm
Driving gear Ultra-fine lead screw Ultra-fine lead screw Ultra-fine lead screw Ultra-fine lead screw
Travel 200 mm 120 mm 120 mm 60 mm
Minimum adjustment 5μ(for reference) 5μ(for reference) 5μ(for reference) 5μ(for reference)
Load capacity 25kg 25kg 25kg 20kg
Weight 5.2kg 4.2kg 4.6kg 1.15kg
Material Duralumin Duralumin Duralumin Duralumin
Surface Blackened by anodic oxidation Blackened by anodic oxidation Blackened by anodic oxidation Blackened by anodic oxidation

Lab Jacks with translation screw

Features
  • No humps on the surface, leaving room for installation. The stage us linear Z axis.
  • Driven by screw and five-axis positioning mechanism, the displacement is accurate and stable.
  • Suitable for low workload and tiny adjustment.
  • Suitable to be built in other devices.
WN09VM20
Model WN09VM20
Table size 76mm×100mm
Driving gear Screw
Travel 20 mm
Smallest graduation 5μ
Minimum adjustment 1.5μ(for reference)
Guide rail Dovetail guide
Load capacity 1kg
Straightness 5μ
Table parallelism 100μ
Running verticality 20μ
Weight 0.72kg
Material Duralumin
Surface Blackened by anodic oxidation
