25mm High Performance linear Stages

Here are the 25mm high performance linear stages, made of duralumin, blackened by anodic oxidation. 8 models for you to choose from: WN107TM ~WN113TM、WN200TM. Micrometer head can be placed on one side or on the center of the stage.

Features
  • Adopting crossed roller guide, the duralumin stage has a higher load capacity.
  • With high precision base and table, the linear stage has a high accuracy of straightness, yawing, pitching and parallelism.
  • The high precision small resolution micrometer head ensures the displacement to be adjusted at the nanometer level.
  • Use spring reset device to eliminate axial clearance.
  • The mounting holes are distributed on the base and table in standard distance, which makes the stage easier to be installed and combined.
  • The linear stage can be combined with other series of stages to form multi-axis positioning stage.
WN107TM
WN108TM
WN109TM

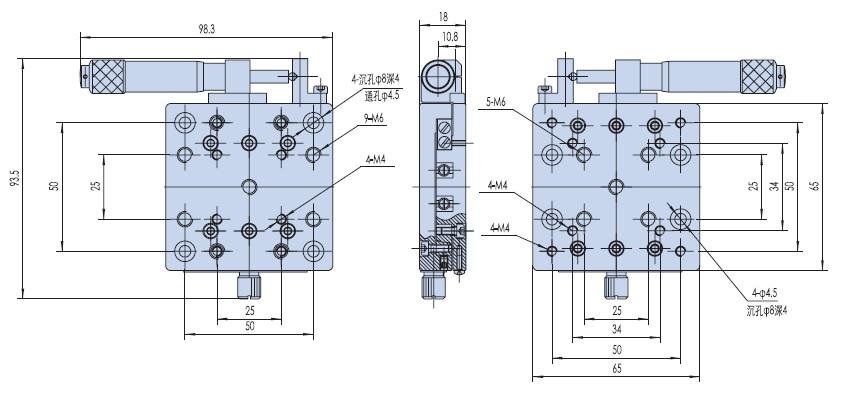

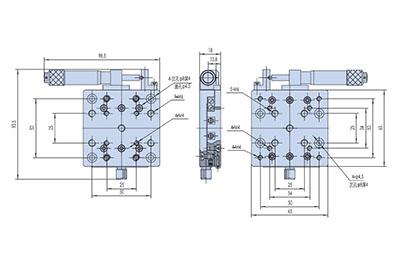

WN110TM
WN111TM
WN112TM
WN113TM
WN200TM
Model WN108TM WN109TM WN110TM WN111TM WN112TM WN113TM WN200TM
Table size 65mm×65mm 65mm×65mm 65mm×65mm 65mm×65mm 65mm×65mm 53mm×53mm 65mm×65mm
Drive Micrometer head Micrometer head Micrometer head Micrometer head Micrometer head Micrometer head Micrometer head
Drive position Lateral drive Central drive Lateral drive Central drive Lateral drive Central drive Central drive
Travel 25mm 25mm 25mm 25mm 25mm 25mm 25mm
Smallest graduation 0.01mm 10μ/0.5μ 10μ/0.5μ 0.01mm 0.01mm 10μ/0.5μ 10μ/0.5μ
Minimal adjustment 0.002 (Reference)2μ/0.1μ 2μ/0.1μ 0.002 0.002 2μ/0.1μ 2μ
Guide type Crossed roller guide Crossed roller guide Crossed roller guide Crossed roller guide Crossed roller guide Crossed roller guide Crossed roller guide
Load capacity 15kg 10kg 10kg 20kg 20kg 15kg 8kg
Straightness 3μ 2μ 2μ 3μ 3μ 3μ 2μ
Yawing 25″ 25″ 25″ 25″ 25″ 25″ 20″
Pitching 15″ 15″ 15″ 15″ 15″ 20″ 10″
Table parallelism 15μ 15μ 15μ 15μ 15μ 25μ 5μ
Running parallelism 7μ 7μ 7μ 7μ 7μ 10μ 5μ
Weight 0.5kg 0. 4kg 0.4kg 0.5kg 0.5kg 0.52kg 0.15kg
Material Duralumin Duralumin Duralumin Duralumin Duralumin Duralumin Duralumin
Surface Blackened by anodic oxidation Blackened by anodic oxidation Blackened by anodic oxidation Blackened by anodic oxidation Blackened by anodic oxidation Blackened by anodic oxidation Blackened by anodic oxidation
Precision - 3μ/1.5μ 3μ/1.5μ - - 3μ/1.5μ 3μ/1.5μ
