WN01PH Optical Post Holders

WN01PH optical post holder itself could not rotate or lift. 5 models to choose from, the height varies from 25mm-150mm.

Features
  • The diameter of center hole is 12mm, and could fix the holder at different height.
  • The center hole has a precision V-shaped groove, which wouldn't change the position of other parts when adjusting the height of the holder, the groove also has stable locking effect.
  • M6 thread holes are on the bottom of optical post holder, which makes the holder easy to connect with other optical base.
WN01PH25
WN01PH50
WN01PH75
WN01PH100
WN01PH150
Model WN01PH25 WN01PH50 WN01PH75 WN01PH100 WN01PH150
Center hole diameter 12 mm 12 mm 12 mm 12 mm 12 mm

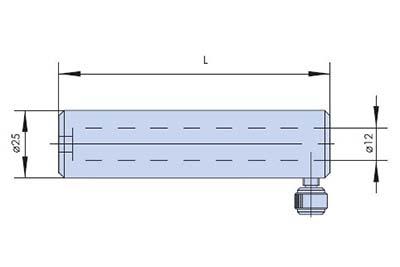

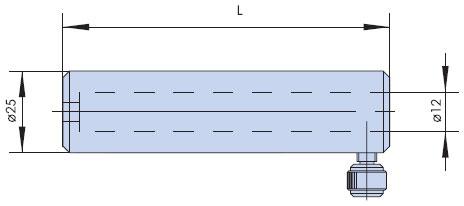

L 25 mm 50 mm 75 mm 100 mm 150 mm
Weight 0.03 kg 0.04 kg 0.1 kg 0.11 kg 0.15 kg
