φ12mm Optical Mounting Posts

The 4 series ofφ12mm optical mounting posts: WN01SP、WN02SP、WN03SP、WN04SP. The posts are made of stainless steel, the available height is 25mm-300mm. The posts have wide application, can be used with other adjusting rack in our company.

Features
  • It is made of high quality stainless steel with high precision and good look.
  • Multiple models to meet different needs.
  • The mounting post can also be used with other adjusting rack in our company.
  1. WN01SP
  2. WN02SP
  3. WN03SP
  4. WN04SP
WN01SP
Model WN01SP25 WN01SP50 WN01SP75 WN01SP100 WN01SP150 WN01SP200 WN01SP300
Diameter 12 mm
Screw thread One side is M6 male screw, another is M6 female screw.
L 25 50 75 100 150 200 300
H 8 15 25 30 50 60 100
Weight 0.025 kg 0.05 kg 0.075 kg 0.1 kg 0.015 kg 0.2 kg 0.3 kg

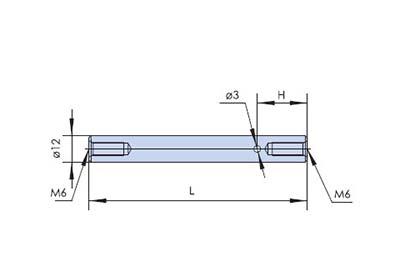

WN02SP
Model WN02SP25 WN02SP50 WN02SP75 WN02SP100 WN02SP150 WN02SP200 WN02SP300
Diameter 12 mm
Screw thread Both sides are M6 female screw
L 25 50 75 100 150 200 300
H none 25 30 30 50 60 100
Weight 0.025 kg 0.05 kg 0.075 kg 0.1 kg 0.015 kg 0.2 kg 0.3 kg
WN03SP
Model WN03SP25 WN03SP50 WN03SP75 WN03SP100 WN03SP150 WN03SP200 WN03SP300
Diameter 12 mm
Screw thread one side is M4 female screw, another is M6 female screw.
L 25 50 75 100 150 200 300
H none 25 30 30 50 60 100
Weight 0.025 kg 0.05 kg 0.075 kg 0.1 kg 0.015 kg 0.2 kg 0.3 kg
WN04SP
Model WN04SP25 WN04SP50 WN04SP75 WN04SP100 WN04SP150 WN04SP200 WN04SP300
Diameter 12 mm
Screw thread Both sides are M4 female screw
L 25 50 75 100 150 200 300
H 无 25 25 30 50 60 100
Weight 0.025 kg 0.05 kg 0.075 kg 0.1 kg 0.015 kg 0.2 kg 0.3 kg
