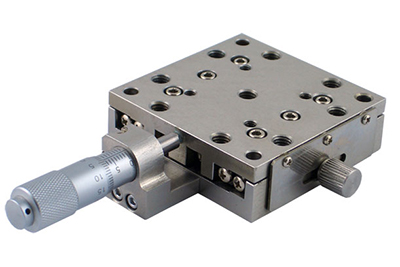

13mm Travel Precision Translation Stages

Our 25mm travel stainless steel precision translation linear stages have 6 models, WN101TM~ WN106TM to choose from. WN105TM, WN106TM are designed with side lock to enhance the stability of the table. The stage is suitable to provide manual linear displacement in the fields of scientific research, automatic measurement and testing.
The linear motion is driven by the micrometer head. Adopting crossed roller bearing, higher center load capacity as well as more stable motion is allowed. The high precision small resolution micrometer head ensures the displacement adjusted at the nanometer level

Features of precision motorized linear stage
  • Precision machined with stainless steel, the manual stage has high stiffness and load capacity.
  • Adopting high precision cross roller guide, the stainless steel linear stage has high precision and is durable.
  • With high precision base and table, the linear stage has a high accuracy of straightness, yawing, pitching and parallelism.
  • Use spring reset device to eliminate axial clearance.
  • Linear scale can be added to display micro incremental movement.
  • The mounting holes are distributed on the base and table with standard hole spacing, which makes the linear stage convenient to do installation and combination.
  • The linear stage can be combined with other series of stages to form multi-axis positioning stage.
WN101TM13H
WN102TM13H
WN103TM13H
WN104TM13H
WN105TM13H
WN106TM13H
Model WN101TM13H WN102TM13H WN103TM13H WN104TM13H WN105TM13H WN106TM13H
Table size 40mm×40mm 40mm×40mm 60mm×60mm 60mm×60mm 60mm×60mm 60mm×60mm
Drive Micrometer head Micrometer head Micrometer head Micrometer head Micrometer head Micrometer head
Drive position Central drive Lateral drive Central drive Lateral drive Central drive Lateral drive
Travel 13mm 13mm 13mm 13mm 13mm 13mm
Smallest graduation 10μ/0.5μ 10μ/0.5μ 10μ/0.5μ 10μ/0.5μ 10μ/0.5μ 10μ/0.5μ
Precision 3μ/1.5μ 3μ/1.5μ 3μ/1.5μ 3μ/1.5μ 3μ/1.5μ 3μ/1.5μ
Minimal adjustment 2μ/0.1μ 2μ/0.1μ 2μ/0.1μ 2μ/0.1μ 2μ/0.1μ 2μ/0.1μ
Guide type Crossed roller guide Crossed roller guide Crossed roller guide Crossed roller guide Crossed roller guide Crossed roller guide
Load capacity 8kg 8kg 10kg 10kg 10kg 10kg
Straightness 2μ 2μ 2μ 2μ 2μ 2μ
Yawing 25″ 25″ 25″ 25″ 25″ 25″
Pitching 15″ 15″ 15″ 15″ 15″ 15″
Table parallelism 15μ 15μ 15μ 15μ 15μ 15μ
Running parallelism 8μ 7μ 7μ 7μ 7μ 7μ
Weight 0.24kg 0.24kg 0.4kg 0.4kg 0.4 kg 0.4kg
Material Stainless steel Stainless steel Stainless steel Stainless steel Stainless steel Stainless steel
Surface Blackened by anodic oxidation Blackened by anodic oxidation Blackened by anodic oxidation Blackened by anodic oxidation Blackened by anodic oxidation Blackened by anodic oxidation
