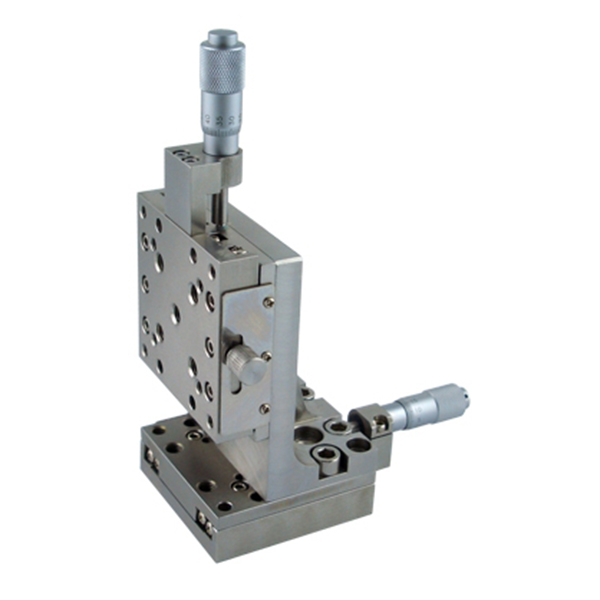

WN206ZM13H Stainless Steel Precision Multi-Axis Stage

This product has been discontinued and removed from our shelves.

The WN206ZM13H stainless steel precision multi-axis stage is suitable to provide multi-axis displacement in the fields of scientific research, automatic measurement and test.

The movement is driven by the micrometer head, and the micrometer head is mounted in the center of the linear stage, which makes the operation convenient. The high precision small resolution micrometer head ensures the displacement can be adjusted at the nanometer level.

• Precision machined with stainless steel, the manual stage has high stiffness and load capacity.
• Adopting high precision cross roller guide, the stainless steel stage has high precision and long life.
• With high precision base and table, the stage has a high accuracy of straightness, yawing, pitching and parallelism.
• Use reset spring to eliminate axial clearance.
• The mounting holes are distributed on the base and table with standard hole spacing, which makes the stage convenient to do installation and combination.
• The linear stage can be combined with other series of stages to form multi-axis positioning stage.
• Grating ruler can be added to display micro incremental movement.
• The multi-axis stage is made of stainless steel with anodized surface.
• Adopting high precision cross roller guide, the stainless steel stage has high precision and is durable.
• With high precision base and table, the manual stage has a high accuracy of straightness, yawing, pitching and parallelism.
• Adpot spring reset to eliminate axial clearance.
• The mounting holes are distributed on the base and table with standard hole spacing, which makes the precision stage convenient to do installation and combination.
• The linear stage can be combined with other series of stages to form multi-axis positioning stage.
• Linear scale can be added to display micro incremental movement.
