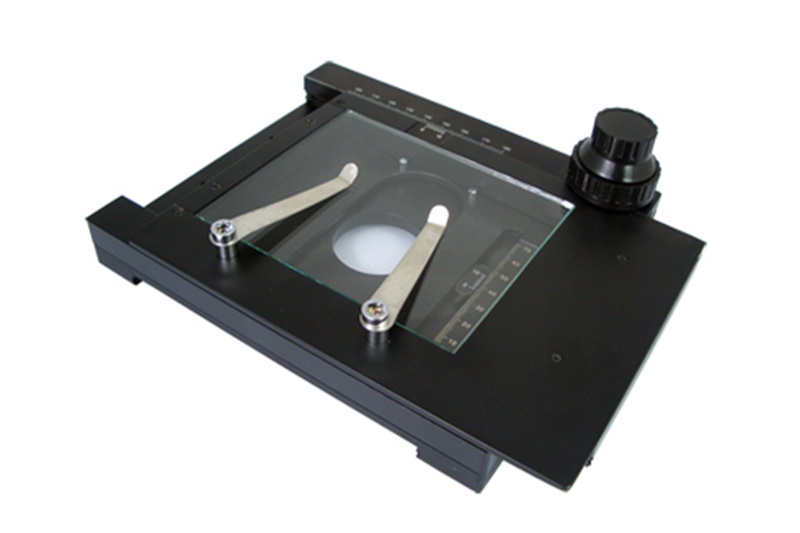

WN205WM Low Profile Integrated Linear Stage

The low profile integrated linear stage can be used to provide multi-dimensional adjustment manually in the fields of scientific research, automatic measurement and test.

Specifications
Model Table size Adjustment dimensions Travel range Drive method Drive position Straightness Yawing Pitching Table parallelism Driving parallelism Two axes verticality Load capacity Weight
WN203WM (70x50) L 96mm×116mm X, Y two axes 75 mm knob

 side drive 3μ 25″ 20″ 50μ 25μ 25μ 1kg 2.5kg
Features
  • The integrated linear stage is made of duralumin and the surface is treated by anodizing.
  • The stage is easy to use with a compact structure, and two-dimensional adjustment can be realized in a small space.
  • The integrity of the structure ensures the parallelism and verticality of the motion along two axes.
  • The stage is convenient to operate with a single side control structure.
  • Adopting gear and rack guide, the stage moves smoothly, which ensures the stage has a high accuracy of straightness, yawing and pitching.
