Beamsplitter / Kinematic Mirror Mount

This product has been discontinued and removed from our shelves.

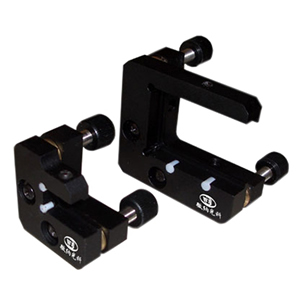

Beamsplitter / kinematic mirror mount can be used in laser processing, optical experiments and automatic measurement and testing and other places that require to assemble beamsplitter mirror mount.

WN071KM(12.7-38.1) beam splitter/ kinematic mirror mounts
Features
  • Use steel ball and wedge drive mechanism to turn the pitching adjustment along the optical axis to the direction perpendicular to the optical axis.
  • Light path will not be shaded due to a special drive mode.
  • Lockable adjustment screw pair can be fixed when adjusted to a suitable place.
  • Diameter: 12.7-38.1mm available
WN100KM(38.1-50.8) beamsplitter mirror mounts
Features
  • Diameter: 38.1-50.8mm available.
  • Adjusted by lockable M6x0.25 fine adjustment screw, the mirror mount loosening due to vibration can be greatly avoided.
  • High performance tension spring returns with uniform return force and reduced stress.
  • The mounting holes of 2 directions are suitable for different optical path.
WN120KM(20-50.8) beamsplitter mirror mounts
Features
  • Diameter: 20-50.8mm available.
  • Adjusted by lockable M6x0.25 fine adjustment screw, the mirror mount loosening due to vibration can be greatly avoided.
  • High performance tension spring returns with uniform return force and reduced stress.
  • The mounting holes of 2 directions are suitable for different optical path.
WN130KM beam splitter/ kinematic mirror mounts
Specification
Model WN130KM10 WN130KM15 WN130KM30 WN130KM45 WN130KM50
A 10 mm 15 mm 30 mm 45 mm 50 mm
B 15 mm 25 mm 45 mm 60 mm 75 mm
C 20.5 mm 23 mm 30.5 mm 38 mm 40.5 mm
D 23 mm 28 mm 38 mm 45.5 mm 53 mm
Features
  • Adjusted by lockable M6x0.25 fine adjustment screw, the mirror mount loosening due to vibration can be greatly avoided.
  • Disc spring returns with adjustable return force.
  • The mounting seat with opening makes it convenient to align.
  • The lens tube can be used for housing optics and then fixed to the mirror mounts.
  • The optics can be effectively protected by Teflon gasket.
  • The mounting holes of 2 directions are suitable for different optical path.
