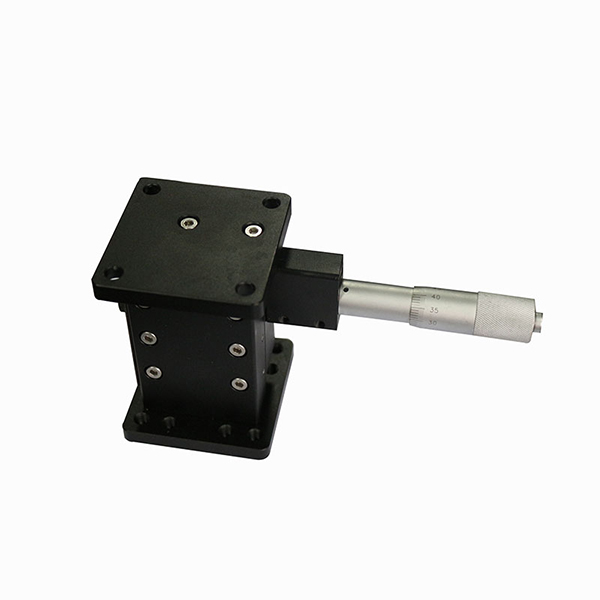

WN06VM25 Manual Lab Jack

This product has been discontinued and removed from our shelves.

The lab jack can be used to provide vertical displacement manually in the fields of scientific research, automatic measurement and test.

Specifications
Model Table size Actuator Travel range Minimum graduation Precision Minimum incremental motion Load capacity Straightness Table parallelism Running verticality Weight
WN06VM25 65mm×65mm micrometer head 25 mm 0.01 mm 5μ 2μ (for reference) 15kg 3μ 50μ 30μ 0.68kg
Features of precision motorized linear stage
  • The manual lab jack is made of hard aluminum material, and the surface is treated by black anodizing
  • Adopting high quality cross roller guide, the lab jack has a higher precision and large load capacity.
  • The lateral clearance adjustment structure ensures smooth movement and high accuracy of yawing and pitching.
  • The lab jack is driven by micrometer head, with a mechanism changes the horizontal drive into vertical drive, which makes it easy to adjust height.
  • The lab jack is reset by spring to eliminate backlash.

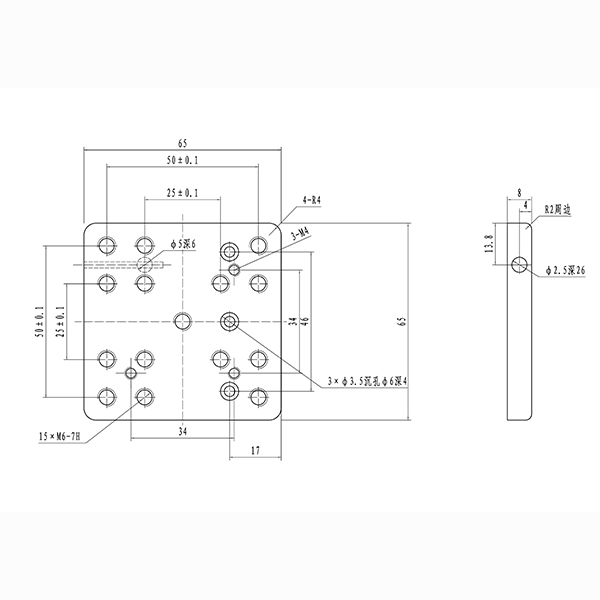

  • The mounting holes are distributed on the base and table with standard hole spacing, which makes the stage convenient to combine with other series of stages to form high precision six dimensional positioning stage.
